IMPINJ Monza R6 Printable UHF Clothing RFID Label/ Sticker/Tag For Garment Clothes Inventory

FOB Reference Price:Get Latest Price
$0.021 - $0.08 / Pieces | 200 Piece/Pieces (Min. Order)
Model Number:
ZDEATA-002
Lead Time:
Quantity(Pieces) 1 - 10000 10001 - 100000 100001 - 1000000 >1000000
Est. Time(days) 5 7 12 Negotiable
Customization:
Customized logo (Min. Order: 200 Pieces)
Customized packaging (Min. Order: 10000 Pieces)

More

Graphic customization (Min. Order: 200 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ZDEATA
Product name:
Clothing RFID Label
Material:
Paper , Adhesive , PET

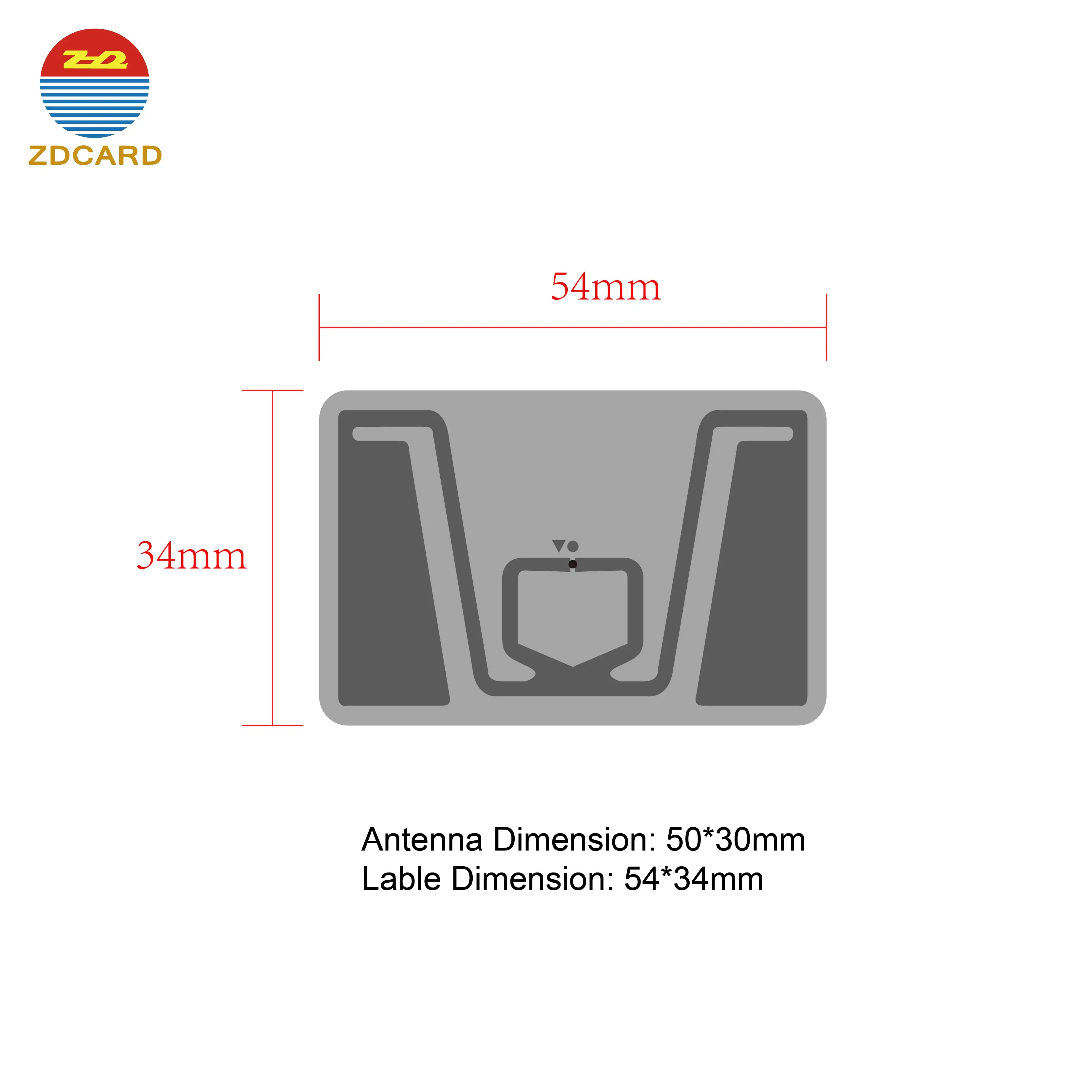

Antenna Dimension:
50*30mm
Label Dimension:
54*34mm
Brand:
ZDEATA or OEM
Frequency:
UHF
Chip:
IMPINJ Monza R6
Pringting:
Full color, logo, Number
Crafts:
Number Printing, Encoding and Encryption operation
Application:
Asset management, Warehouse Management, Shipping Labels, etc
Supply Ability
Supply Ability:
5000000 Piece/Pieces per Month
Packaging & Delivery
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 10000 10001 - 100000 100001 - 1000000 >1000000
Est. Time(days) 5 7 12 To be negotiated
Product Description

IMPINJ Monza R6 Printable UHF Clothing RFID Label/ Sticker/Tag For Garment Clothes Inventory

19 Years experience, 35000 square meters own factory!
Customization Antenna Design
Support You with the Most Challenging RFID Projects
A free sample of UHF Smart RFID Label is available for testing!
RFID ZD-HR61 Impinj Monza R6 UHF Tags/Label/Stickers are used for garment cloth tracking management, warehouse management, asset tracking, logistics, smart retail management, etc.
ZD-HR61 Main Characteristics
1. Product: ZD-HR61
2. Chip: Impinj Monza R6
3. Antenna Dimension: 30x50mm
4. Label Dimension: 54*34mm or customized
5. Reading Distance: 5M

 ZD-HR61 Advantage
1. Highly efficient smaller form-factor tag, still robust, proven and reliable.
2. Designed to drive down the cost-of-ownership while increasing the efficiencies of RFID solutions in large enterprises.
Item
Description
Remarks
Manufaturer/chip
Paper/PET/PP
AD: AW3209, AW2150, AW1416
UPM: 04RP5X01H0  Or Customization
100um thickness
Protocol
ISO/IEC 18000-6C
EPC Class1 Gen2
Frequency
860~960MHz

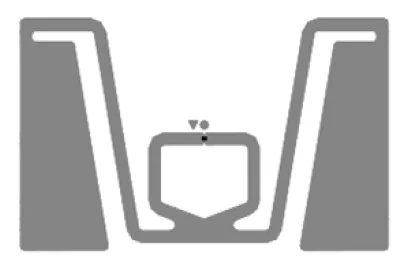

Antenna
Aluminum etching Al(10μm)+PET(50μm)
Memory
EPC: Up to 96 Bits (Read and write)
TID: 48 Bits             (Read only)
Unique TID: 48 Bits(Read only)
Password area: 0
User area: 0
Reading distance
5m
IMPINJ R2000 Fixed Reader (1W+30dbm)
3m
IMPINJ R2000 Module handsets(1W+30dbm)
Operating Mode
Passive
IC life
100,000 Programming cycles,
10years data retention
ESD Voltage Immunity
At most 2000v
Human being mode(HBM)
Requirement of Environment
1. operating tempreture/humidity:-40~70ºC/ 20%~90% RH
2. Storage tempreture/humidity:-25~50ºC / 20%~90% RH
3. Shelf Life:From the date of manufacture, 1 year in vacuumed bag at +23°C±5°C / 50%±10%RH)
Application

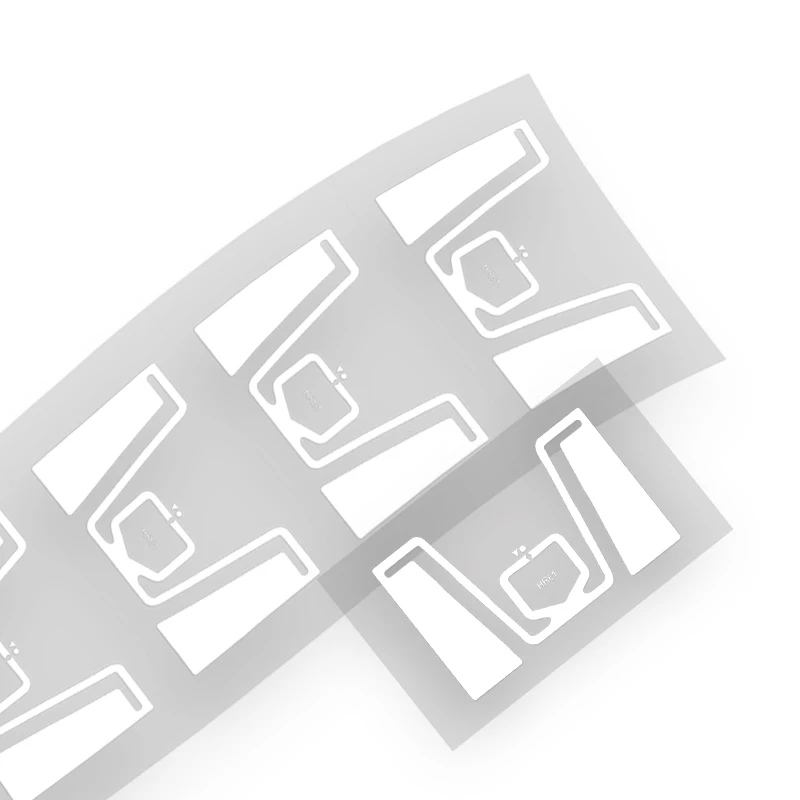

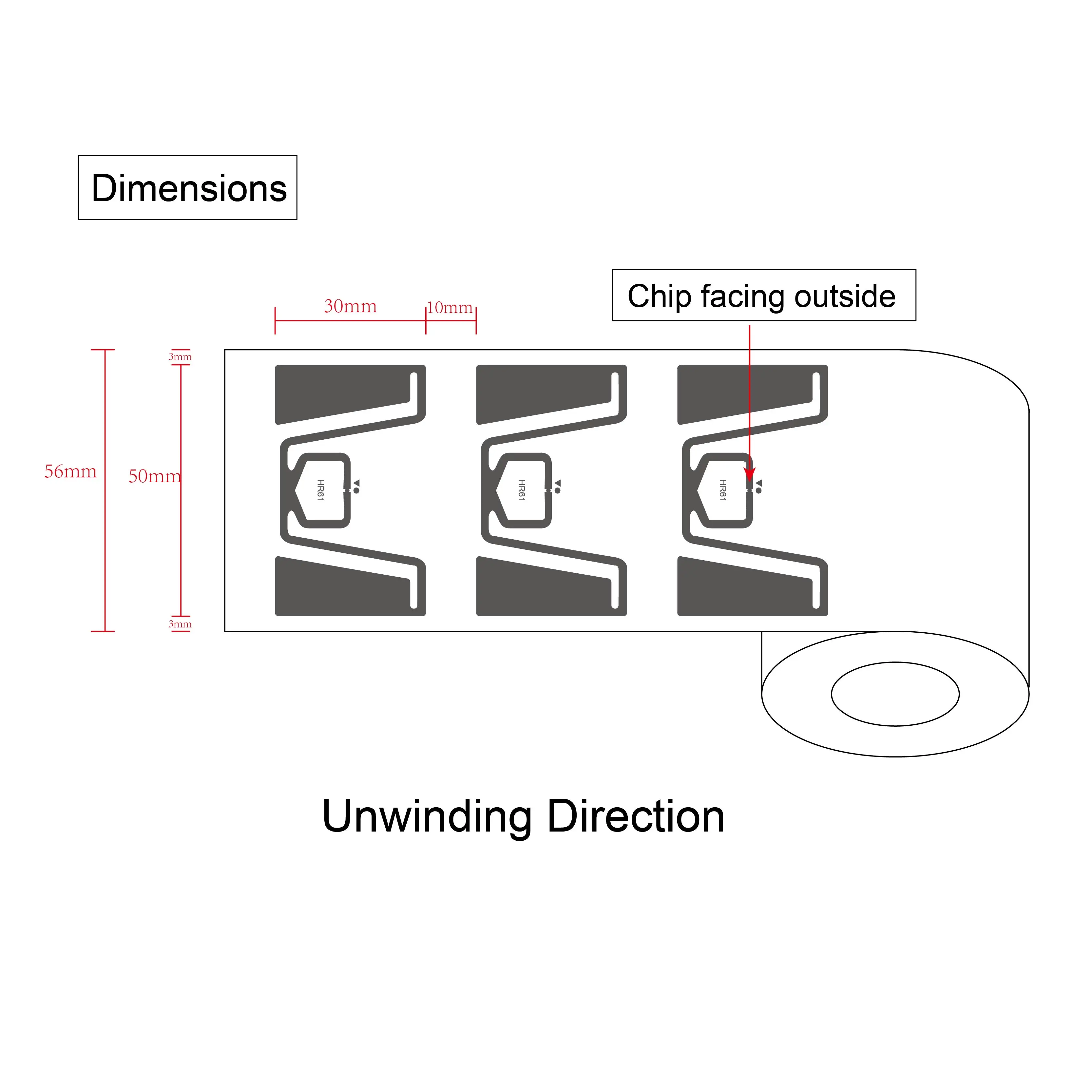

Details Images

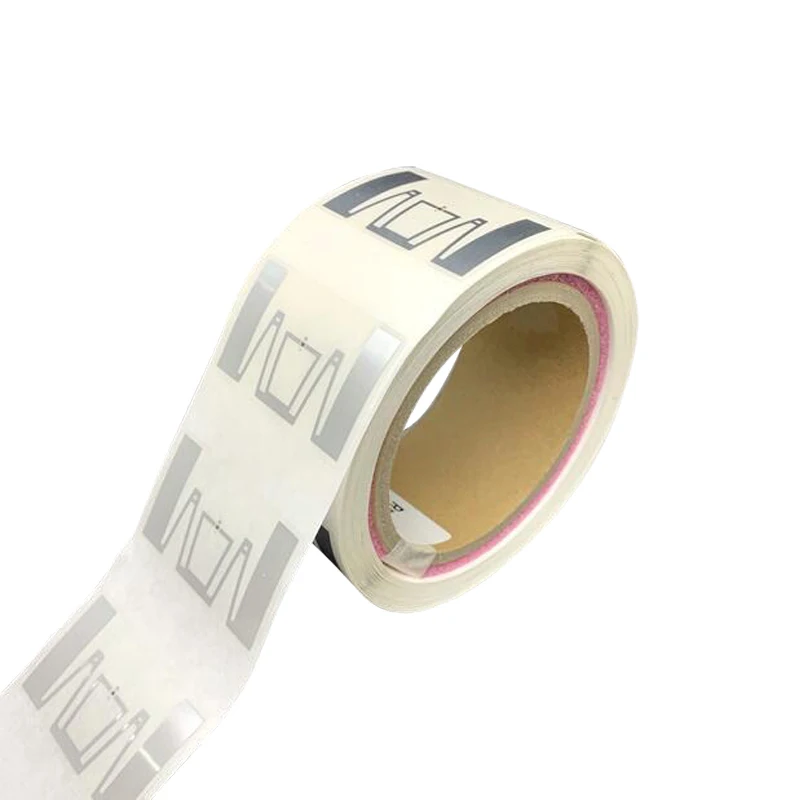

Product packaging

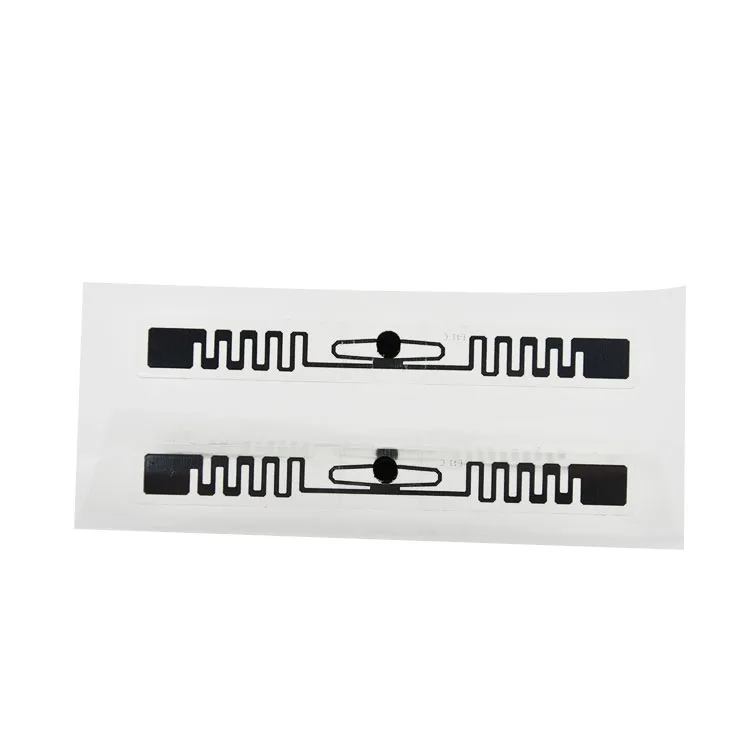

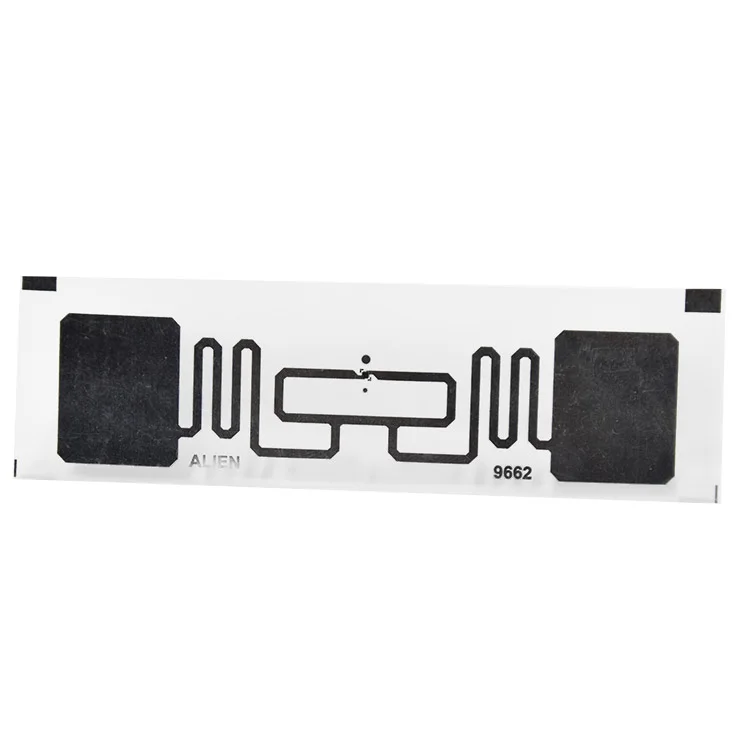

Related UHF Inlay
