ISO14443A 0.4mm 0.45mm 0.5mm A4 Smart NFC RFID Card Dry Inlay Prelam

FOB Reference Price:Get Latest Price
US $0.6-1.5 / Units | 500 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZDCARD
Model Number:
RFID Prelam
Material:
PVC
Color:
White or Transparent
Chip Protocal:
ISO 7816
Thickness:
LF normal 0.55 min 0.5mm; HF normal 0.45mm,0.5mm; UHF 0.5mm, 0.6mm
Layout:
3x7, 5x5, 3x8, 4x8, 4x6, 2x5, 2x4, 2x10 or customized
Antenna:
Pre-winding Copper coil, Ultrasonic Embeding
Bonding:
Wire Bonding
Payment term:
T/T, Western Union or Money Gram
Application:
E-ticket, Payment, Access Control etc
Supply Ability
Supply Ability:
3000000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Small carton size: 32*23*15cm, 500pcs in each carton;
Medium carton size: 40*23*28cm, 1500pcs in each carton;
Big carton size: 51*29*32cm, 2300pcs in each carton;
Port
Shenzhen
Lead Time :
7-9 days

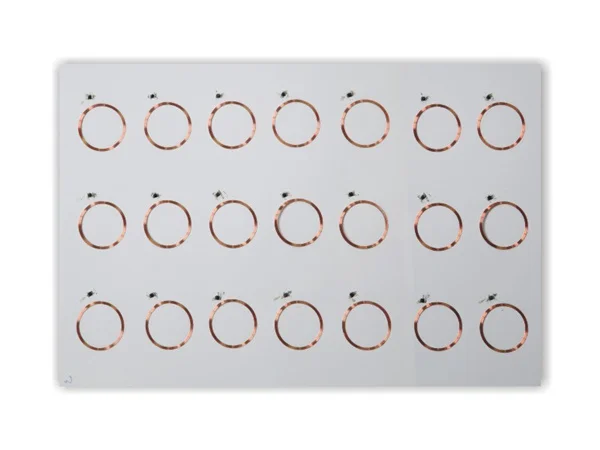

Inlay and Prelam
RFID Inlay sheet for card , also named rfid card prelam, contactless card inlay, it is the core part of RFID card.
We produce this plastic card inlay with three technologies:
1. Ultrasonic technology, features best working performance
2. Pre-winding technology, features low cost.
3. Flip-chip technology, features flat surface, and very thinner thickness
Product
RFID Card Inlay Sheet PVC Sheet for ID Card/RFID Inlay/RFID Prelam Custom
Material
PVC, PC, PET.PETG
Color
White or Transparent
Standard
ISO 11784/11785, ISO14443, ISO15693, ISO18000 6C, etc.
Dimension
310*468mm, Max. size 520*420mm, A4 210*297mm, etc.

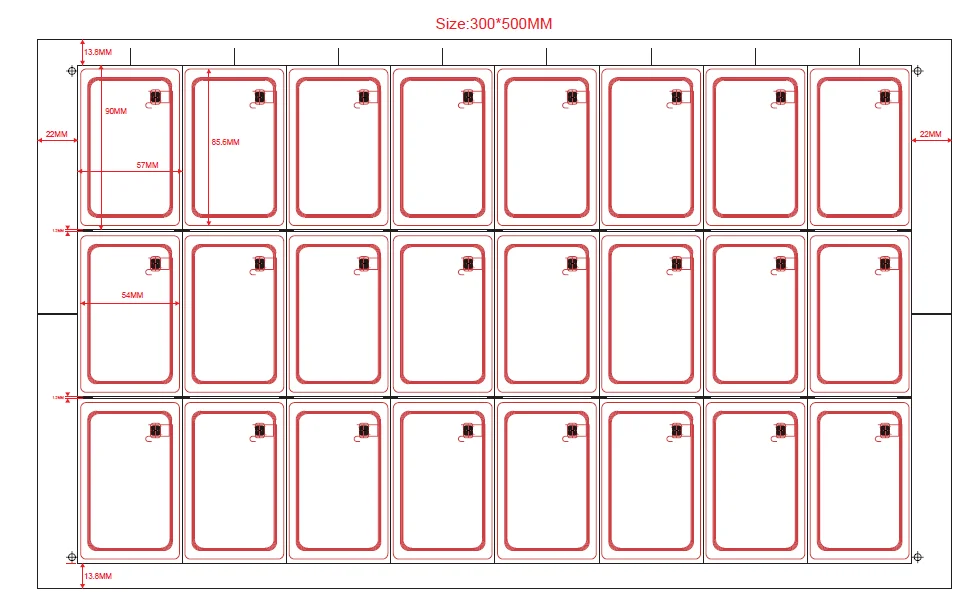

Layout
2*5, 4*5, 5*5, 4*6, 4*7, 4*8, 4*10, 3*6, 3*7, 3*8, 6*7, 6*8, 6*14 or customized.

Thickness
HF: normal 0.45mm, 0.5mm, min.0.3mm
LF: normal 0.6mm, Min. 0.5mm
UHF: 0.6mm, 0.5mm

Antenna
LF: Pre-winding Copper Coli, AL Etching
HF: AL Etching, Pre-winding Copper Coil, Ultrasonic Embeding
UHF: AL Etching
 Work Temperature
-25℃ ~ +55℃
 Store Temperature
-25℃ ~ +65℃
 Applications
Access Control & Security, Time Attendance, Logical Access, Public Transport, City Card, etc.
Available Chips
LF: 125KHz
TK4100/EM4100/EM4102/EM4200/EM4305/T5577/ HITAG® S256;


HF: 13.56MHz
NTAG® 203, NTAG® 213, NTAG® 215, NTAG® 216;
MIFARE Classic® 1K, MIFARE Classic® 4K;
MIFARE Plus® 1K, MIFARE Plus® 2K, MIFARE Plus® 4K;
MIFARE Ultralight® EV1, MIFARE Ultralight® C;
MIFARE® DESFire® 2K, MIFARE® DESFire® 4K, MIFARE® DESFire® 8K;
ICODE® SLIX, ICODE® SLIX-S, ICODE® SLIX-L, ICODE® SLIX 2
UHF: 860-960MHz
Alien H3, Impinj Monza4QT, UCODE®  etc
Remark:
NTAG are registered trademarks of NXP B.V. and are used under license.
ICODE are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Classic are trademarks of NXP B.V.
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.
MIFARE DESFire are registered trademarks of NXP B.V. and are used under license
HITAG is a registered trademark of NXP B.V.



2x5 layout





                                                      5x5 layout



      3x7 layout





                                     4x4 layout

                               (dual frequency)







   3x8 layout






                                                         3x7 layout

                                                   (dual frequency)
Our Company
ZDCARD(GROUP) Technology Limited is based on Shenzhen ZDCARD Industry Co., LTD which was founded in 2000. After 16 years fast development, we have developed from a PVC card and smart card manufacturer to a national hi-tech group which covers R&D and production of RFID chip, RFID tags, and solution. We also design and produce transparent plastic package and large scale plastic printing. We are a leading and diversified multinational corporation with a sales revenue up to 30 million USD and our target is achieving 80 million USD in 2018.
